Image:BCSMART 11-12 Figure 1.JPG
From Proteopedia
No higher resolution available.

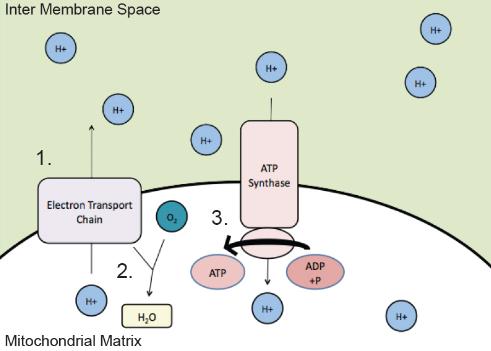

FIGURE 1: Movement of Protons (H+) Across Inner Mitochondrial Membrane 1.The electron transport chain pumps protons (H+) into the inter membrane space. 2.Protons (H+) in the matrix bond with oxygen (O2) to form water (H2O) in a reduction reaction. 3.Protons (H+) from the inter membrane space are used by ATP synthase, to provide energy for the conversion of ADP to ATP.
