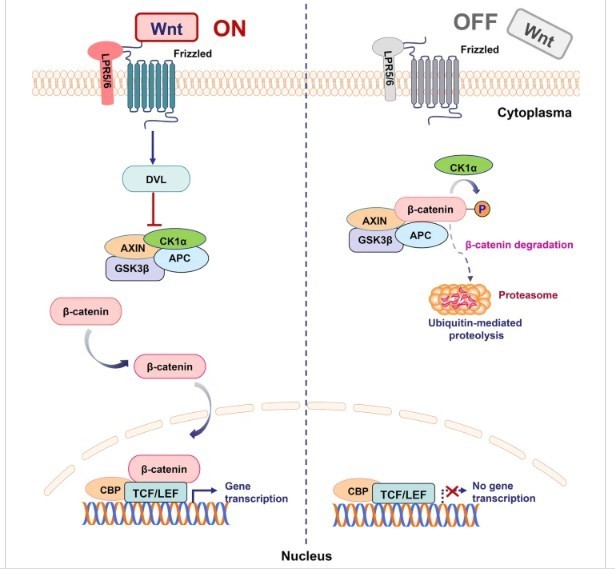

Fig. 3 – Canonical Wnt signal pathway: right – active Wnt pathway, left – inactive Wnt pathway, LPR5/6 – co-receptor interacts with Frizzled receptor through wnt molecule, DVL – Dishevelled protein inhibits degradation complex, CK1α - Casein kinase 1α phosphorylates β-catenin and allows binding of GSK3β, GSK3β - Glycogen synthase kinase 3β phosphorylates β-catenin and indicates it for degradation, APC - Adenomatous polyposis coli protein helps to binding of β-cateninu to CK1α and GSK3β, TCF/LEF – family of transcription factors, CBP - CREB-binding protein. Taken from [1]
